7A1F

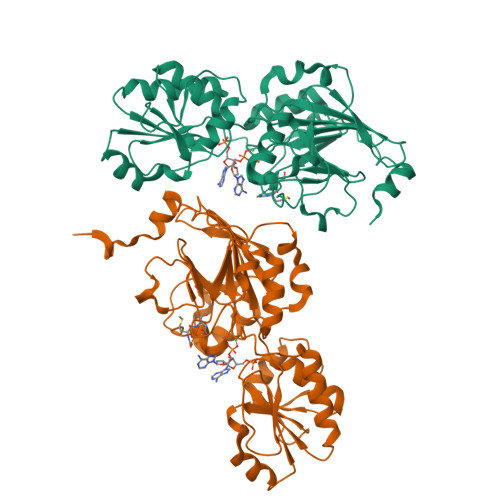

Crystal structure of human 5' exonuclease Appollo in complex with 5'dAMP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.177
  • R-Value Observed: 0.180

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

A phosphate binding pocket is a key determinant of exo- versus endo-nucleolytic activity in the SNM1 nuclease family.

Baddock, H.T.Newman, J.A.Yosaatmadja, Y.Bielinski, M.Schofield, C.J.Gileadi, O.McHugh, P.J.

(2021) Nucleic Acids Res 49: 9294-9309

  • DOI: https://doi.org/10.1093/nar/gkab692
  • Primary Citation of Related Structures:
    7A1F, 7B2X, 7B9B

  • PubMed Abstract:

    The SNM1 nucleases which help maintain genome integrity are members of the metallo-β-lactamase (MBL) structural superfamily. Their conserved MBL-β-CASP-fold SNM1 core provides a molecular scaffold forming an active site which coordinates the metal ions required for catalysis. The features that determine SNM1 endo- versus exonuclease activity, and which control substrate selectivity and binding are poorly understood. We describe a structure of SNM1B/Apollo with two nucleotides bound to its active site, resembling the product state of its exonuclease reaction. The structure enables definition of key SNM1B residues that form contacts with DNA and identifies a 5' phosphate binding pocket, which we demonstrate is important in catalysis and which has a key role in determining endo- versus exonucleolytic activity across the SNM1 family. We probed the capacity of SNM1B to digest past sites of common endogenous DNA lesions and find that base modifications planar to the nucleobase can be accommodated due to the open architecture of the active site, but lesions axial to the plane of the nucleobase are not well tolerated due to constriction around the altered base. We propose that SNM1B/Apollo might employ its activity to help remove common oxidative lesions from telomeres.


  • Organizational Affiliation

    Department of Oncology, MRC Weatherall Institute of Molecular Medicine, University of Oxford, OX3 9DS, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
5' exonuclease ApolloA,
B [auth L]
342Homo sapiensMutation(s): 0
Gene Names: DCLRE1BSNM1B
EC: 3.1 (PDB Primary Data), 3.5.2.6 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H816 (Homo sapiens)
Explore Q9H816
Go to UniProtKB:  Q9H816
PHAROS:  Q9H816
GTEx:  ENSG00000118655
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H816
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
D5M (Subject of Investigation/LOI)
Query on D5M

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
I [auth L],
J [auth L]
2'-DEOXYADENOSINE-5'-MONOPHOSPHATE
C10 H14 N5 O6 P
KHWCHTKSEGGWEX-RRKCRQDMSA-N
NI
Query on NI

Download Ideal Coordinates CCD File
D [auth A],
H [auth L]
NICKEL (II) ION
Ni
VEQPNABPJHWNSG-UHFFFAOYSA-N
FE
Query on FE

Download Ideal Coordinates CCD File
C [auth A],
G [auth L]
FE (III) ION
Fe
VTLYFUHAOXGGBS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.177
  • R-Value Observed: 0.180
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 50.121α = 75.48
b = 54.183β = 74.33
c = 72.109γ = 63.09
Software Package:
Software NamePurpose
Aimlessdata scaling
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Cancer Research UKUnited Kingdom--

Revision History  (Full details and data files)

  • Version 1.0: 2021-01-20
    Type: Initial release
  • Version 1.1: 2022-08-03
    Changes: Database references
  • Version 1.2: 2024-01-31
    Changes: Data collection, Refinement description
