5UG8

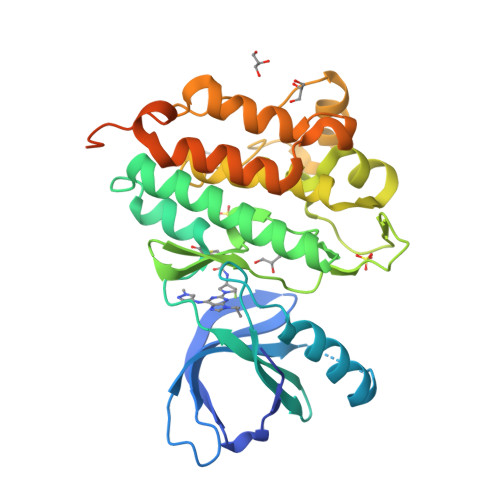

Crystal structure of the EGFR kinase domain (L858R, T790M, V948R) in complex with a covalent inhibitor N-[(3R,4R)-4-fluoro-1-{6-[(1-methyl-1H-pyrazol-4-yl)amino]-9-(propan-2-yl)-9H-purin-2-yl}pyrrolidin-3-yl]propanamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.46 Å
  • R-Value Free: 0.207
  • R-Value Work: 0.192
  • R-Value Observed: 0.193

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Discovery of N-((3R,4R)-4-Fluoro-1-(6-((3-methoxy-1-methyl-1H-pyrazol-4-yl)amino)-9-methyl-9H-purin-2-yl)pyrrolidine-3-yl)acrylamide (PF-06747775) through Structure-Based Drug Design: A High Affinity Irreversible Inhibitor Targeting Oncogenic EGFR Mutants with Selectivity over Wild-Type EGFR.

Planken, S.Behenna, D.C.Nair, S.K.Johnson, T.O.Nagata, A.Almaden, C.Bailey, S.Ballard, T.E.Bernier, L.Cheng, H.Cho-Schultz, S.Dalvie, D.Deal, J.G.Dinh, D.M.Edwards, M.P.Ferre, R.A.Gajiwala, K.S.Hemkens, M.Kania, R.S.Kath, J.C.Matthews, J.Murray, B.W.Niessen, S.Orr, S.T.Pairish, M.Sach, N.W.Shen, H.Shi, M.Solowiej, J.Tran, K.Tseng, E.Vicini, P.Wang, Y.Weinrich, S.L.Zhou, R.Zientek, M.Liu, L.Luo, Y.Xin, S.Zhang, C.Lafontaine, J.

(2017) J Med Chem 60: 3002-3019

  • DOI: https://doi.org/10.1021/acs.jmedchem.6b01894
  • Primary Citation of Related Structures:
    5UG8, 5UG9, 5UGA, 5UGB, 5UGC

  • PubMed Abstract:

    Mutant epidermal growth factor receptor (EGFR) is a major driver of non-small-cell lung cancer (NSCLC). Marketed first generation inhibitors, such as erlotinib, effect a transient beneficial response in EGFR mutant NSCLC patients before resistance mechanisms render these inhibitors ineffective. Secondary oncogenic EGFR mutations account for approximately 50% of relapses, the most common being the gatekeeper T790M substitution that renders existing therapies ineffective. The discovery of PF-06459988 (1), an irreversible pyrrolopyrimidine inhibitor of EGFR T790M mutants, was recently disclosed.1 Herein, we describe our continued efforts to achieve potency across EGFR oncogenic mutations and improved kinome selectivity, resulting in the discovery of clinical candidate PF-06747775 (21), which provides potent EGFR activity against the four common mutants (exon 19 deletion (Del), L858R, and double mutants T790M/L858R and T790M/Del), selectivity over wild-type EGFR, and desirable ADME properties. Compound 21 is currently being evaluated in phase-I clinical trials of mutant EGFR driven NSCLC.


  • Organizational Affiliation

    Wuxi AppTec, 288 Fute Zhong Road, Waigaoqiao Free Trade Zone, Shanghai 200131, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Epidermal growth factor receptor329Homo sapiensMutation(s): 3
Gene Names: EGFRERBBERBB1HER1
EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00533 (Homo sapiens)
Explore P00533
Go to UniProtKB:  P00533
PHAROS:  P00533
GTEx:  ENSG00000146648
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00533
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
8BP
Query on 8BP

Download Ideal Coordinates CCD File
B [auth A]N-[(3R,4R)-4-fluoro-1-{6-[(1-methyl-1H-pyrazol-4-yl)amino]-9-(propan-2-yl)-9H-purin-2-yl}pyrrolidin-3-yl]propanamide
C19 H26 F N9 O
CGULPICMFDDQRH-ZIAGYGMSSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
G [auth A],
H [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.46 Å
  • R-Value Free: 0.207
  • R-Value Work: 0.192
  • R-Value Observed: 0.193
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 34.948α = 90
b = 69.836β = 90
c = 113.252γ = 90
Software Package:
Software NamePurpose
CNXrefinement
SCALAdata scaling
CNXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2017-03-22
    Type: Initial release
  • Version 1.1: 2017-04-26
    Changes: Database references
  • Version 1.2: 2024-11-20
    Changes: Data collection, Database references, Structure summary
