8EHH

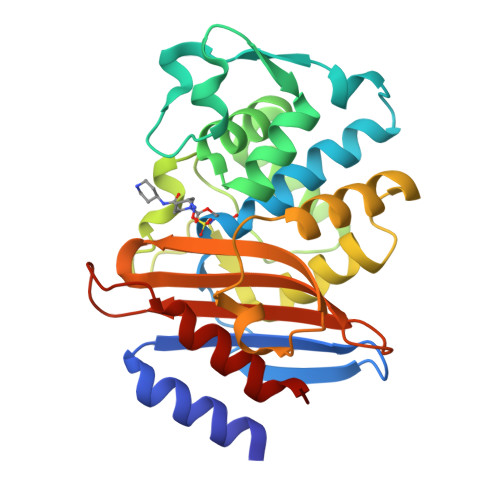

Crystal structure of the class A extended-spectrum beta-lactamase CTX-M-96 in complex with relebactam at 1.03 Angstrom resolution


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.03 Å
  • R-Value Free: 0.155
  • R-Value Work: 0.139
  • R-Value Observed: 0.139

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 2.1 of the entry. See complete history


Literature

Crystal structure of the class A extended-spectrum beta-lactamase CTX-M-96 in complex with relebactam at 1.03 Angstrom resolution.

Ghiglione, B.Rodriguez, M.M.Penzotti, P.Bethel, C.R.Gutkind, G.Bonomo, R.A.Klinke, S.Power, P.

(2024) Antimicrob Agents Chemother 68: e0172123-e0172123

  • DOI: https://doi.org/10.1128/aac.01721-23
  • Primary Citation of Related Structures:
    8EHH

  • PubMed Abstract:

    The use of β-lactam/β-lactamase inhibitors constitutes an important strategy to counteract β-lactamases in multidrug-resistant (MDR) Gram-negative bacteria. Recent reports have described ceftazidime-/avibactam-resistant isolates producing CTX-M variants with different amino acid substitutions (e.g., P167S, L169Q, and S130G). Relebactam (REL) combined with imipenem has proved very effective against Enterobacterales producing ESBLs, serine-carbapenemases, and AmpCs. Herein, we evaluated the inhibitory efficacy of REL against CTX-M-96, a CTX-M-15-type variant. The CTX-M-96 structure was obtained in complex with REL at 1.03 Å resolution (PDB 8EHH). REL was covalently bound to the S70-Oγ atom upon cleavage of the C7-N6 bond. Compared with apo CTX-M-96, binding of REL forces a slight displacement of the deacylating water inwards the active site (0.81 Å), making the E166 and N170 side chains shift to create a proper hydrogen bonding network. Binding of REL also disturbs the hydrophobic patch formed by Y105, P107, and Y129, likely due to the piperidine ring of REL that creates clashes with these residues. Also, a remarkable change in the positioning of the N104 sidechain is also affected by the piperidine ring. Therefore, differences in the kinetic behavior of REL against class A β-lactamases seem to rely, at least in part, on differences in the residues being involved in the association and stabilization of the inhibitor before hydrolysis. Our data provide the biochemical and structural basis for REL effectiveness against CTX-M-producing Gram-negative pathogens and essential details for further DBO design. Imipenem/REL remains an important choice for dealing with isolates co-producing CTX-M with other β-lactamases.


  • Organizational Affiliation

    Universidad de Buenos Aires, Facultad de Farmacia y Bioquímica, Instituto de Investigaciones en Bacteriología y Virología Molecular (IBaViM), Buenos Aires, Argentina.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-lactamase263Klebsiella pneumoniaeMutation(s): 0
Gene Names: blaCTX-M-12 variantblaCTX-M
EC: 3.5.2.6
UniProt
Find proteins for Q6ZXB6 (Klebsiella pneumoniae)
Explore Q6ZXB6
Go to UniProtKB:  Q6ZXB6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6ZXB6
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
MK7 (Subject of Investigation/LOI)
Query on MK7

Download Ideal Coordinates CCD File
B [auth A](2S,5R)-1-formyl-N-(piperidin-4-yl)-5-[(sulfooxy)amino]piperidine-2-carboxamide
C12 H22 N4 O6 S
VGHMECNLFQGIJM-MNOVXSKESA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.03 Å
  • R-Value Free: 0.155
  • R-Value Work: 0.139
  • R-Value Observed: 0.139
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 44.48α = 90
b = 45.59β = 90
c = 117.67γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
MxCuBEdata collection
XDSdata reduction
Aimlessdata scaling
PHENIXphasing
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Scientific and Technical Research Council (CONICET)Argentina11220200100191CO
Agencia Nacional de Promocion Cientifica y Tecnologica (FONCYT)ArgentinaPICT-2018-01550

Revision History  (Full details and data files)

  • Version 1.0: 2023-09-20
    Type: Initial release
  • Version 2.0: 2024-03-13
    Type: Coordinate replacement
    Reason: Missing anisotropic B-factor
    Changes: Advisory, Atomic model, Data collection, Database references, Derived calculations, Refinement description, Structure summary
  • Version 2.1: 2024-10-09
    Changes: Database references, Structure summary
