2OSO | pdb_00002oso

Crystal structure of a vinyl-4-reductase family protein (mj_1460) from methanocaldococcus jannaschii dsm at 1.90 A resolution

• PDB DOI: https://doi.org/10.2210/pdb2OSO/pdb

• Classification: METAL BINDING PROTEIN
• Organism(s): Methanocaldococcus jannaschii DSM 2661
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2007-02-06 Released: 2007-02-20
• Deposition Author(s): Joint Center for Structural Genomics (JCSG)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free:
  0.245 (Depositor), 0.250 (DCC)
• R-Value Work:
  0.189 (Depositor), 0.190 (DCC)
• R-Value Observed:
  0.192 (Depositor)

Starting Model: experimental

Literature

Crystal structure of hypothetical protein MJ_1460 (1592102) from Methanocaldococcus jannaschii at 1.90 A resolution

Joint Center for Structural Genomics (JCSG)

To be published.

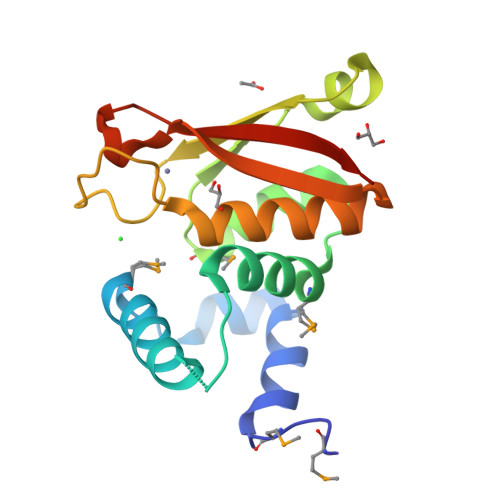

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA,PQS (software)

Macromolecule Content

• Total Structure Weight: 19.55 kDa
• Atom Count: 1,420
• Modelled Residue Count: 157
• Deposited Residue Count: 163
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Hypothetical protein MJ1460	A	163	Methanocaldococcus jannaschii DSM 2661	Mutation(s): 8  Gene Names: 1592102, MJ1460
UniProt
Find proteins for Q58855 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440)) Explore Q58855  Go to UniProtKB:  Q58855

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GOL	E [auth A], F [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
ZN	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N
ACT	D [auth A]	ACETATE ION C2 H3 O2 QTBSBXVTEAMEQO-UHFFFAOYSA-M
CL	C [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MSE	A	L-PEPTIDE LINKING	C5 H11 N O2 Se		MET

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free:  0.245 (Depositor), 0.250 (DCC)
• R-Value Work:  0.189 (Depositor), 0.190 (DCC)
• R-Value Observed: 0.192 (Depositor)

Diffraction Data: https://doi.org/10.18430/M32OSO

Space Group: P 3₁ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.1	α = 90
b = 42.1	β = 90
c = 172.4	γ = 120

Software Package:

Software Name	Purpose
MolProbity	model building
REFMAC	refinement
XSCALE	data scaling
PDB_EXTRACT	data extraction
MAR345	data collection
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2007-02-20
Deposition Author(s): Joint Center for Structural Genomics (JCSG)

Revision History

• Version 1.0: 2007-02-20
  Type: Initial release

• Version 1.1: 2008-05-01
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Advisory, Derived calculations, Version format compliance
• Version 1.3: 2017-10-18
  Changes: Refinement description
• Version 1.4: 2021-10-20
  Changes: Database references, Derived calculations
• Version 1.5: 2023-01-25
  Changes: Database references
• Version 1.6: 2023-09-20
  Changes: Data collection, Refinement description
• Version 1.7: 2023-11-15
  Changes: Data collection
• Version 1.8: 2024-10-30
  Changes: Structure summary
