3RPI

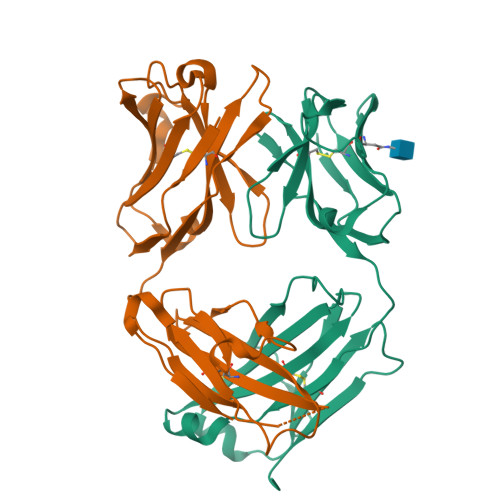

Crystal Structure of Fab from 3BNC60, Highly Potent anti-HIV Antibody


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.208
  • R-Value Observed: 0.210

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Sequence and structural convergence of broad and potent HIV antibodies that mimic CD4 binding.

Scheid, J.F.Mouquet, H.Ueberheide, B.Diskin, R.Klein, F.Oliveira, T.Y.Pietzsch, J.Fenyo, D.Abadir, A.Velinzon, K.Hurley, A.Myung, S.Boulad, F.Poignard, P.Burton, D.R.Pereyra, F.Ho, D.D.Walker, B.D.Seaman, M.S.Bjorkman, P.J.Chait, B.T.Nussenzweig, M.C.

(2011) Science 333: 1633-1637

  • DOI: https://doi.org/10.1126/science.1207227
  • Primary Citation of Related Structures:
    3RPI

  • PubMed Abstract:

    Passive transfer of broadly neutralizing HIV antibodies can prevent infection, which suggests that vaccines that elicit such antibodies would be protective. Thus far, however, few broadly neutralizing HIV antibodies that occur naturally have been characterized. To determine whether these antibodies are part of a larger group of related molecules, we cloned 576 new HIV antibodies from four unrelated individuals. All four individuals produced expanded clones of potent broadly neutralizing CD4-binding-site antibodies that mimic binding to CD4. Despite extensive hypermutation, the new antibodies shared a consensus sequence of 68 immunoglobulin H (IgH) chain amino acids and arise independently from two related IgH genes. Comparison of the crystal structure of one of the antibodies to the broadly neutralizing antibody VRC01 revealed conservation of the contacts to the HIV spike.


  • Organizational Affiliation

    Laboratory of Molecular Immunology, The Rockefeller University, New York, NY 10065, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Light chain from highly potent anti-HIV neutralizing antibodyA [auth L],
D [auth B]
206Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Heavy chain from highly potent anti-HIV neutralizing antibodyB [auth H],
C [auth A]
229Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG
Query on NAG

Download Ideal Coordinates CCD File
E [auth L],
F [auth B]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.208
  • R-Value Observed: 0.210
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 63.62α = 90
b = 155.68β = 110.4
c = 74.76γ = 90
Software Package:
Software NamePurpose
Web-Icedata collection
PHASERphasing
PHENIXrefinement
XDSdata reduction
XDSdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-07-20
    Type: Initial release
  • Version 1.1: 2011-08-03
    Changes: Database references, Structure summary
  • Version 1.2: 2011-09-28
    Changes: Database references
  • Version 1.3: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
