2XXL | pdb_00002xxl

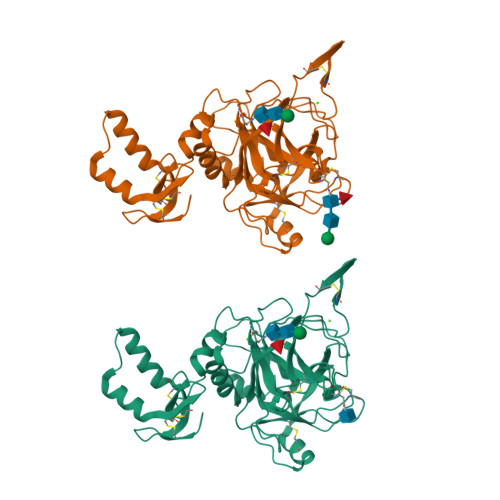

Crystal structure of drosophila Grass clip serine protease of Toll pathway


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.203 (Depositor), 0.210 (DCC)
  • R-Value Work:
    0.177 (Depositor), 0.180 (DCC)
  • R-Value Observed:
    0.178 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted NAGClick on this verticalbar to view details

This is version 2.2 of the entry. See complete history


Literature

Structure-Function Analysis of Grass Clip Serine Protease Involved in Drosophila Toll Pathway Activation.

Kellenberger, C.Leone, P.Coquet, L.Jouenne, T.Reichhart, J.M.Roussel, A.

(2011) J Biological Chem 286: 12300

  • DOI: https://doi.org/10.1074/jbc.M110.182741
  • Primary Citation of Related Structures:
    2XXL

  • PubMed Abstract:

    Grass is a clip domain serine protease (SP) involved in a proteolytic cascade triggering the Toll pathway activation of Drosophila during an immune response. Epistasic studies position it downstream of the apical protease ModSP and upstream of the terminal protease Spaetzle-processing enzyme. Here, we report the crystal structure of Grass zymogen. We found that Grass displays a rather deep active site cleft comparable with that of proteases of coagulation and complement cascades. A key distinctive feature is the presence of an additional loop (75-loop) in the proximity of the activation site localized on a protruding loop. All biochemical attempts to hydrolyze the activation site of Grass failed, strongly suggesting restricted access to this region. The 75-loop is thus proposed to constitute an original mechanism to prevent spontaneous activation. A comparison of Grass with clip serine proteases of known function involved in analogous proteolytic cascades allowed us to define two groups, according to the presence of the 75-loop and the conformation of the clip domain. One group (devoid of the 75-loop) contains penultimate proteases whereas the other contains terminal proteases. Using this classification, Grass appears to be a terminal protease. This result is evaluated according to the genetic data documenting Grass function.


  • Organizational Affiliation

    Architecture et Fonction des Macromolécules Biologiques UMR6098, Parc Scientifique et Technologique de Luminy, 13288 Marseille Cedex 09, France. Christine.Kellenberger@afmb.univ-mrs.fr


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GRAM-POSITIVE SPECIFIC SERINE PROTEASE, ISOFORM B
A, B
408Drosophila melanogasterMutation(s): 0
EC: 3.4.21.4 (PDB Primary Data), 3.4.21 (UniProt)
UniProt
Find proteins for Q9VB68 (Drosophila melanogaster)
Explore Q9VB68
Go to UniProtKB:  Q9VB68
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9VB68
Glycosylation
Glycosylation Sites: 2Go to GlyGen: Q9VB68-1
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
C, D, E
4N-Glycosylation
Glycosylation Resources
GlyTouCan:  G32152BH
GlyCosmos:  G32152BH
GlyGen:  G32152BH
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.203 (Depositor), 0.210 (DCC)
  • R-Value Work:  0.177 (Depositor), 0.180 (DCC)
  • R-Value Observed: 0.178 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.26α = 90
b = 92.04β = 90
c = 113.34γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
MOSFLMdata reduction
SCALAdata scaling
AMoREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted NAGClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-02-09
    Type: Initial release
  • Version 1.1: 2011-07-07
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Atomic model, Data collection, Derived calculations, Other, Structure summary
  • Version 2.1: 2023-12-20
    Changes: Data collection, Database references, Refinement description, Structure summary
  • Version 2.2: 2024-10-16
    Changes: Structure summary
