3NX5

The crystal structure of Sanguinarine bound to DNA d(CGTACG)

• PDB DOI: https://doi.org/10.2210/pdb3NX5/pdb
• NAKB: 3NX5

• Classification: DNA
• Mutation(s): No


• Deposited: 2010-07-13 Released: 2011-05-04
• Deposition Author(s): Ferraroni, M., Bazzicalupi, C., Gratteri, P., Bilia, A.R.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.31 Å
• R-Value Free: 0.283
• R-Value Work: 0.252
• R-Value Observed: 0.255

Starting Model: experimental

Literature

X-Ray diffraction analyses of the natural isoquinoline alkaloids Berberine and Sanguinarine complexed with double helix DNA d(CGTACG)

Ferraroni, M., Bazzicalupi, C., Bilia, A.R., Gratteri, P.

(2011) Chem Commun (Camb) 47: 4917-4919

• PubMed: 21431128
• DOI: https://doi.org/10.1039/c1cc10971e
• Primary Citation of Related Structures:
  3NP6, 3NX5


• PubMed Abstract:


  The first crystal structures of Berberine and Sanguinarine intercalated with a d(CGTACG)(2) DNA sequence were obtained by X-ray diffraction analysis at 2.3 Å resolution. Both drugs join the end of two "two-molecules" DNA units, stacked in a non-classic intercalation site formed by six bases. Sanguinarine interacts with d(CGTACG)(2) DNA in its iminium form.

---

Organizational Affiliation:

Department of Chemistry Ugo Schiff, University of Firenze, Via della Lastruccia 3-13, I-50019 Sesto Fiorentino, Firenze, Italy.

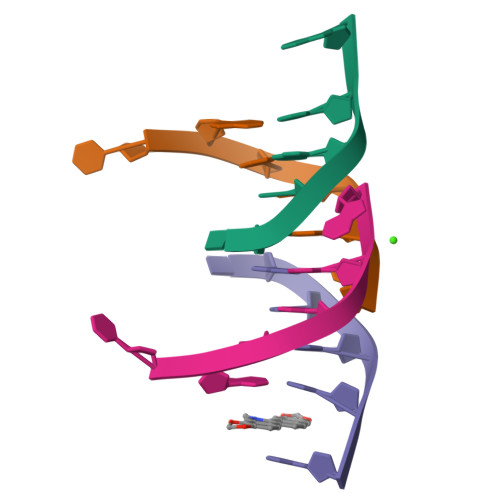

Biological Assembly 1

Biological assembly 1 assigned by authors and generated by PISA (software)

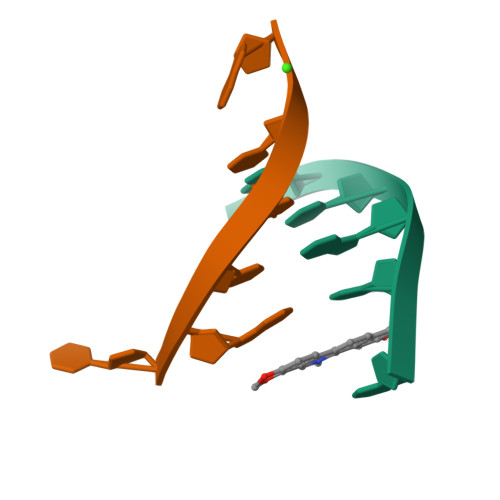

Biological Assembly 2

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 7.61 kDa
• Atom Count: 481
• Modelled Residue Count: 24
• Deposited Residue Count: 24
• Unique nucleic acid chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image
5'-D(*CP*GP*TP*AP*CP*G)-3'	A, B, C, D	6	N/A

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
SAU	E [auth C]	13-methyl[1,3]benzodioxolo[5,6-c][1,3]dioxolo[4,5-i]phenanthridin-13-ium C20 H14 N O4 INVGWHRKADIJHF-UHFFFAOYSA-N
CA	F [auth D]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.31 Å
• R-Value Free: 0.283
• R-Value Work: 0.252
• R-Value Observed: 0.255
• Space Group: P 3₂ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 29.992	α = 90
b = 29.992	β = 90
c = 119.069	γ = 120

Software Package:

Software Name	Purpose
XSCALE	data scaling
MOLREP	phasing
REFMAC	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
XDS	data scaling

Structure Validation

Entry History

Deposition Data

• Released Date: 2011-05-04
Deposition Author(s): Ferraroni, M., Bazzicalupi, C., Gratteri, P., Bilia, A.R.

Revision History

• Version 1.0: 2011-05-04
  Type: Initial release

• Version 1.1: 2011-07-13
  Changes: Version format compliance
• Version 1.2: 2023-11-01
  Changes: Data collection, Database references, Derived calculations, Refinement description
