5LTM

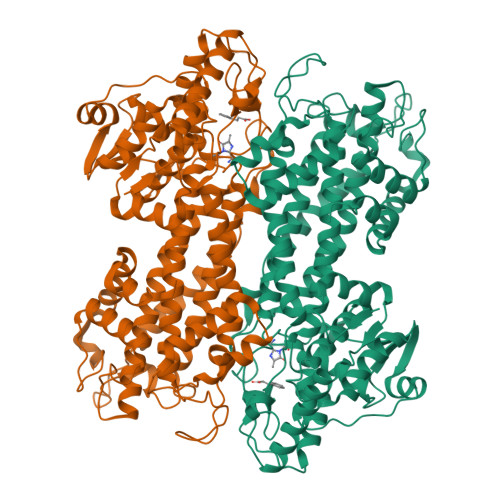

Crystal structure of phenylalanine ammonia-lyase from Anabaena variabilis (Y78F-C503S-C565S) bound to cinnamate

  • Classification: LYASE
  • Organism(s): Anabaena
  • Expression System: Escherichia coli BL21
  • Mutation(s): No

  • Deposited: 2016-09-07 Released: 2017-09-20
  • Deposition Author(s): Dunstan, M.S., Leys, D.
  • Funding Organization(s): Biotechnology and Biological Sciences Research Council

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.41 Å
  • R-Value Free: 0.206
  • R-Value Work: 0.156
  • R-Value Observed: 0.159

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 2.1 of the entry. See complete history


Literature

Zymophore identification enables the discovery of novel phenylalanine ammonia lyase enzymes.

Weise, N.J.Ahmed, S.T.Parmeggiani, F.Galman, J.L.Dunstan, M.S.Charnock, S.J.Leys, D.Turner, N.J.

(2017) Sci Rep 7: 13691-13691

  • DOI: https://doi.org/10.1038/s41598-017-13990-0
  • Primary Citation of Related Structures:
    5LTM

  • PubMed Abstract:

    The suite of biological catalysts found in Nature has the potential to contribute immensely to scientific advancements, ranging from industrial biotechnology to innovations in bioenergy and medical intervention. The endeavour to obtain a catalyst of choice is, however, wrought with challenges. Herein we report the design of a structure-based annotation system for the identification of functionally similar enzymes from diverse sequence backgrounds. Focusing on an enzymatic activity with demonstrated synthetic and therapeutic relevance, five new phenylalanine ammonia lyase (PAL) enzymes were discovered and characterised with respect to their potential applications. The variation and novelty of various desirable traits seen in these previously uncharacterised enzymes demonstrates the importance of effective sequence annotation in unlocking the potential diversity that Nature provides in the search for tailored biological tools. This new method has commercial relevance as a strategy for assaying the 'evolvability' of certain enzyme features, thus streamlining and informing protein engineering efforts.


  • Organizational Affiliation

    School of Chemistry, Manchester Institute of Biotechnology, University of Manchester, 131 Princess Street, Manchester, M1 7DN, United Kingdom.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
phenylalanine ammonia lyaseA [auth B],
B [auth A]
537AnabaenaMutation(s): 0
EC: 4.3.1.24
UniProt
Find proteins for Q3M5Z3 (Trichormus variabilis (strain ATCC 29413 / PCC 7937))
Explore Q3M5Z3
Go to UniProtKB:  Q3M5Z3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3M5Z3
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MDO
Query on MDO
A [auth B],
B [auth A]
L-PEPTIDE LINKINGC8 H11 N3 O3ALA, SER, GLY
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.41 Å
  • R-Value Free: 0.206
  • R-Value Work: 0.156
  • R-Value Observed: 0.159
  • Space Group: P 43 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.077α = 90
b = 78.077β = 90
c = 354.492γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research CouncilUnited Kingdom--

Revision History  (Full details and data files)

  • Version 1.0: 2017-09-20
    Type: Initial release
  • Version 1.1: 2017-11-01
    Changes: Database references
  • Version 1.2: 2018-10-24
    Changes: Data collection, Source and taxonomy
  • Version 1.3: 2019-10-16
    Changes: Data collection
  • Version 2.0: 2023-11-15
    Changes: Atomic model, Data collection, Database references, Derived calculations
  • Version 2.1: 2024-10-23
    Changes: Structure summary
