9GP0 | pdb_00009gp0

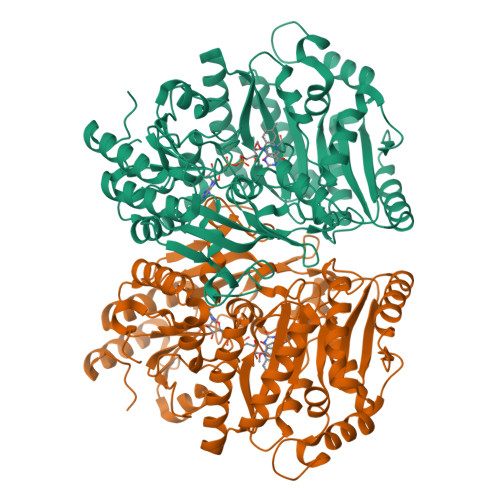

4-allyl syringol oxidase from Streptomyces cavernae: complex with Vanillyl alcohol


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:
    0.227 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.194 (Depositor), 0.201 (DCC)
  • R-Value Observed:
    0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted V55Click on this verticalbar to view details

This is version 1.1 of the entry. See complete history


Literature

Kinetic and structural investigation of the 4-allyl syringol oxidase from Streptomyces cavernae.

Eggerichs, D.Weddeling, H.G.Alvigini, L.Rapsch, T.Weindorf, N.Mattevi, A.Tischler, D.

(2025) Arch Biochem Biophys 765: 110320-110320

  • DOI: https://doi.org/10.1016/j.abb.2025.110320
  • Primary Citation of Related Structures:
    9GOV, 9GOZ, 9GP0

  • PubMed Abstract:

    4-Phenol oxidases are proposed to be involved in the utilization of lignin-derived aromatic compounds. While enzymes with selectivity towards 4-hydroxyphenyl and guaiacyl motifs are well described, we identified the first syringyl-specific oxidase from Streptomyces cavernae (Sc4ASO) only very recently. Here, in-depth studies were conducted to unravel the molecular origins of the outstanding selectivity of Sc4ASO. Kinetic experiments revealed high activities on dimethoxylated substrates (up to 2.9 ± 0.1 s -1 ), but also strong cooperativity between both protein subunits, as well as substrate inhibition in dependency of ortho methoxylation and chain length of the para substituent. Rapid mixing kinetics in combination with the determination of the crystal structure in complex with three substrates allowed to connect the kinetic behavior with never-observed positioning of the conserved residue Y471. Ultimately, the catalytic potential of Sc4ASO was investigated in a 100 mL scale cascade reaction to produce the natural product syringaresinol.


  • Organizational Affiliation

    Microbial Biotechnology, Faculty of Biology and Biotechnology, Ruhr University Bochum, Universitaetsstrasse 150, 44780, Bochum, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
4-allyl syringol oxidase from Streptomyces cavernae
A, B
554Streptomyces cavernaeMutation(s): 0
EC: 1.1.3.38
UniProt
Find proteins for Q0SBK1 (Rhodococcus jostii (strain RHA1))
Explore Q0SBK1
Go to UniProtKB:  Q0SBK1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ0SBK1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:  0.227 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.194 (Depositor), 0.201 (DCC)
  • R-Value Observed: 0.196 (Depositor)
Space Group: P 65
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 83.419α = 90
b = 83.419β = 90
c = 298.892γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted V55Click on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-05
    Type: Initial release
  • Version 1.1: 2025-02-12
    Changes: Database references
