9I3I | pdb_00009i3i

Cryo-EM structure of the MCM-ORC (MO) complex featuring an ORC2 regulatory domain involved in cell cycle regulation of MCM-DH loading for DNA replication.


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history

Re-refinement Note

This entry reflects an alternative modeling of the original data in: 6RQC


Literature

Cell cycle regulation has shaped replication origins in budding yeast.

Lim, C.T.Miller, T.C.R.Tan, K.W.Talele, S.Early, A.East, P.Sanchez, H.Dekker, N.H.Costa, A.Diffley, J.F.X.

(2025) Nat Struct Mol Biol 32: 1697-1707

  • DOI: https://doi.org/10.1038/s41594-025-01591-9
  • Primary Citation of Related Structures:
    8RIF, 8RIG, 9I3I

  • PubMed Abstract:

    Eukaryotic DNA replication initiates from genomic loci known as origins. At budding yeast origins like ARS1, a double hexamer (DH) of the MCM replicative helicase is assembled by origin recognition complex (ORC), Cdc6 and Cdt1 by sequential hexamer loading from two opposed ORC binding sites. Cyclin-dependent kinase (CDK) inhibits DH assembly, which prevents re-replication by restricting helicase loading to the G1 phase. Here, we show that an intrinsically disordered region (IDR) in the Orc2 subunit promotes interaction between ORC and the first loaded, closed-ring MCM hexamer (the MCM-ORC (MO) intermediate). CDK-dependent phosphorylation of this IDR blocks MO formation and DH assembly. We show that MO stabilizes ORC at lower-affinity binding sites required for second hexamer loading. Origins comprising two high-affinity ORC sites can assemble DH efficiently without MO by independently loading single hexamers. Strikingly, these origins escape CDK inhibition in vitro and in vivo. Our work reveals mechanistic plasticity in MCM loading with implications for understanding how CDK regulation has shaped yeast origin evolution and how natural, strong origins might escape cell cycle regulation. We also identify key steps common to loading pathways, with implications for understanding how MCM is loaded in other eukaryotes.


  • Organizational Affiliation
    • Chromosome Replication Laboratory, The Francis Crick Institute, London, UK.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

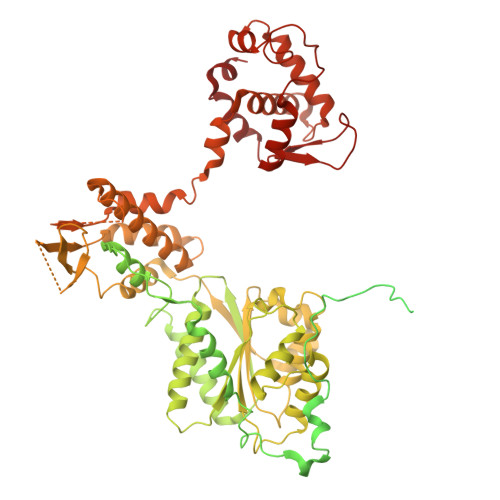

Origin recognition complex subunit 1949Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC1YML065W
UniProt
Find proteins for P54784 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P54784
Go to UniProtKB:  P54784
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54784
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Origin recognition complex subunit 2620Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC2RRR1SIR5YBR060CYBR0523
UniProt
Find proteins for P32833 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32833
Go to UniProtKB:  P32833
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32833
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

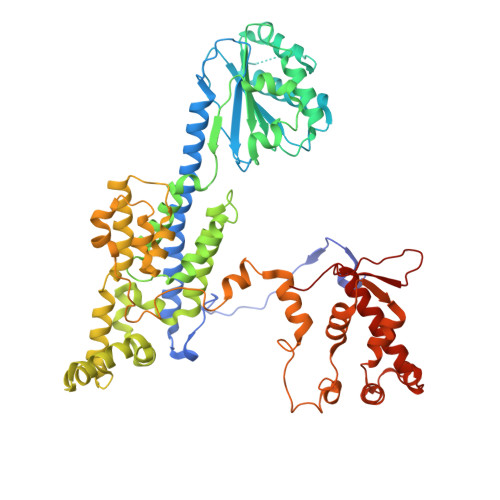

Origin recognition complex subunit 3616Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC3OAF1OIF1YLL004WL1365
UniProt
Find proteins for P54790 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P54790
Go to UniProtKB:  P54790
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54790
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

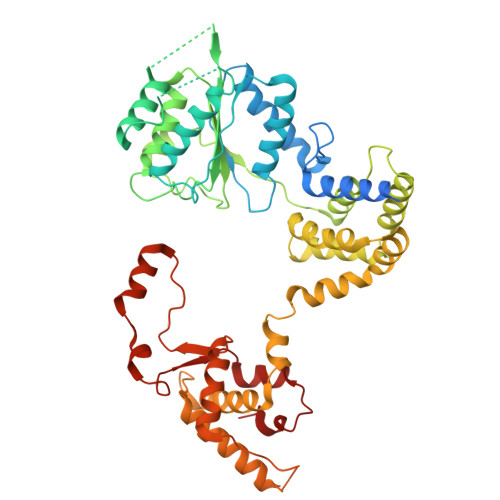

Origin recognition complex subunit 4529Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC4YPR162CP9325.5
UniProt
Find proteins for P54791 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P54791
Go to UniProtKB:  P54791
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54791
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

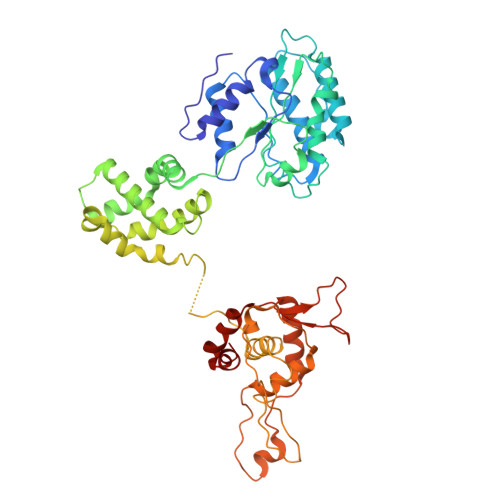

Origin recognition complex subunit 5479Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC5YNL261WN0834
UniProt
Find proteins for P50874 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P50874
Go to UniProtKB:  P50874
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP50874
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

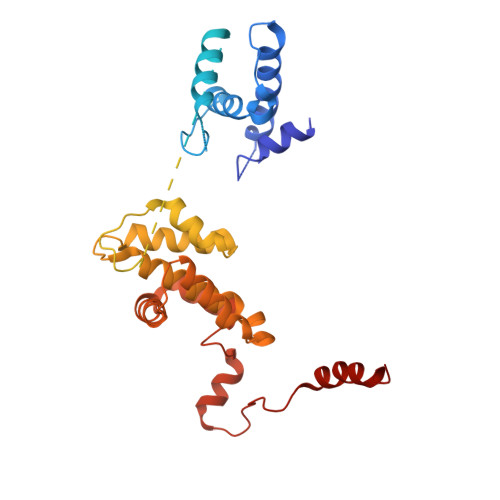

Origin recognition complex subunit 6435Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ORC6AAP1YHR118C
UniProt
Find proteins for P38826 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38826
Go to UniProtKB:  P38826
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38826
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

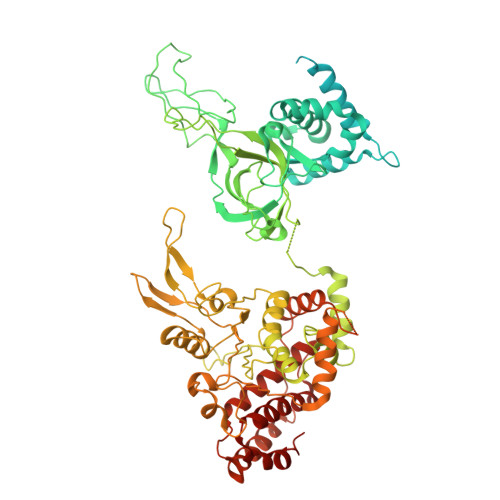

DNA replication licensing factor MCM2G [auth 2]868Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM2YBL023CYBL0438
EC: 3.6.4.12
UniProt
Find proteins for P29469 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P29469
Go to UniProtKB:  P29469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29469
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM3H [auth 3]1,006Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM3YEL032WSYGP-ORF23
EC: 3.6.4.12
UniProt
Find proteins for P24279 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P24279
Go to UniProtKB:  P24279
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP24279
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

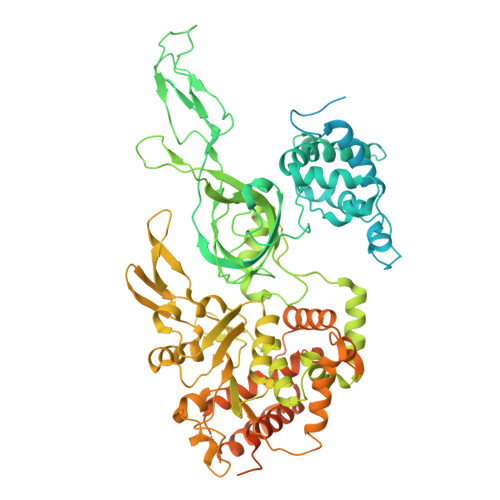

DNA replication licensing factor MCM4I [auth 4]933Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM4CDC54HCD21YPR019WYP9531.13
EC: 3.6.4.12
UniProt
Find proteins for P30665 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30665
Go to UniProtKB:  P30665
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30665
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

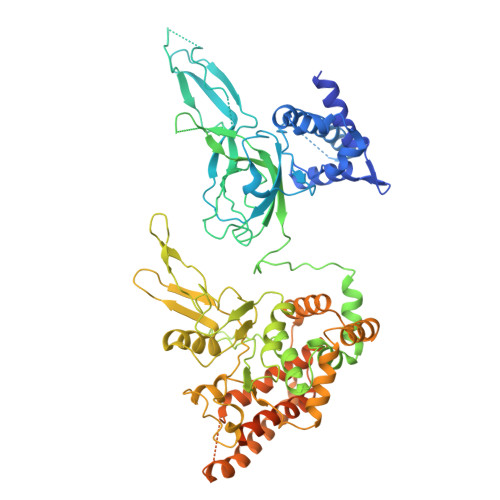

Minichromosome maintenance protein 5J [auth 5]775Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM5CDC46YLR274WL9328.1
EC: 3.6.4.12
UniProt
Find proteins for P29496 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P29496
Go to UniProtKB:  P29496
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29496
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

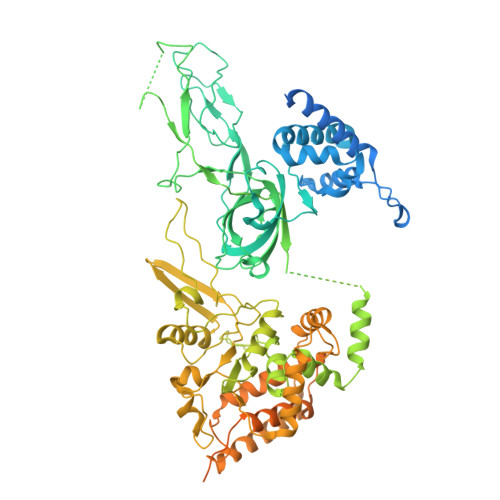

DNA replication licensing factor MCM6K [auth 6]1,017Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM6YGL201C
EC: 3.6.4.12
UniProt
Find proteins for P53091 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53091
Go to UniProtKB:  P53091
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53091
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

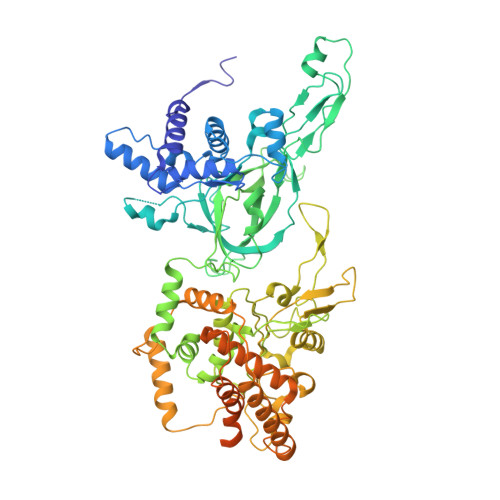

DNA replication licensing factor MCM7L [auth 7]845Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM7CDC47YBR202WYBR1441
EC: 3.6.4.12
UniProt
Find proteins for P38132 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38132
Go to UniProtKB:  P38132
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38132
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains LengthOrganismImage

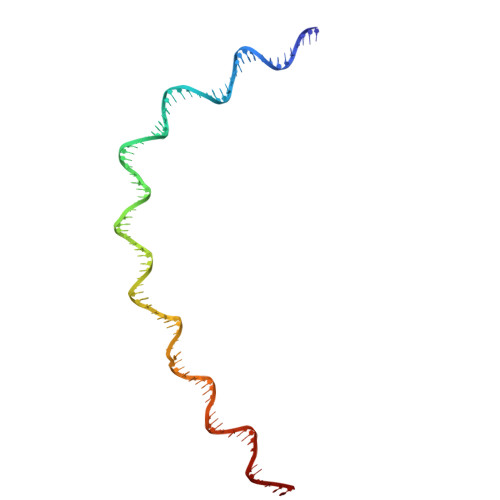

DNA (88-MER)M [auth X]88Saccharomyces cerevisiae S288C
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains LengthOrganismImage

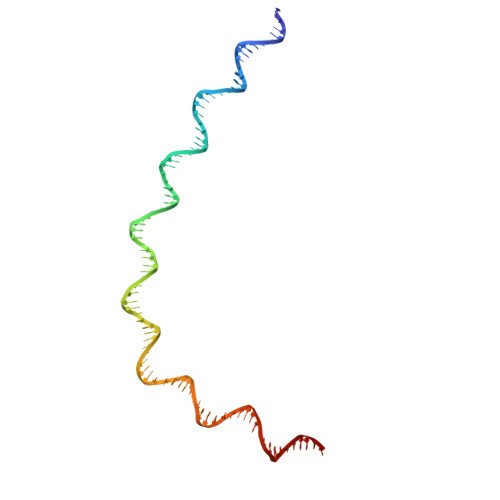

DNA (88-MER)N [auth Y]88Saccharomyces cerevisiae S288C
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
O [auth A],
Q [auth D],
S [auth E]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
BA [auth 7],
U [auth 2],
W [auth 3],
Y [auth 5]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
AA [auth 6],
CA [auth 7],
V [auth 2],
X [auth 4],
Z [auth 5]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
P [auth A],
R [auth D],
T [auth E]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Wellcome TrustUnited KingdomFC0010065
Medical Research Council (MRC, United Kingdom)United KingdomFC0010065
Cancer Research UKUnited KingdomFC0010065
European Research Council (ERC)European Union820102
Novo Nordisk FoundationDenmarkNNF22OC0073571
The Carlsberg FoundationDenmarkCF21_0571

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-25
    Type: Initial release
  • Version 1.1: 2025-07-16
    Changes: Database references
  • Version 1.2: 2025-10-01
    Changes: Database references
